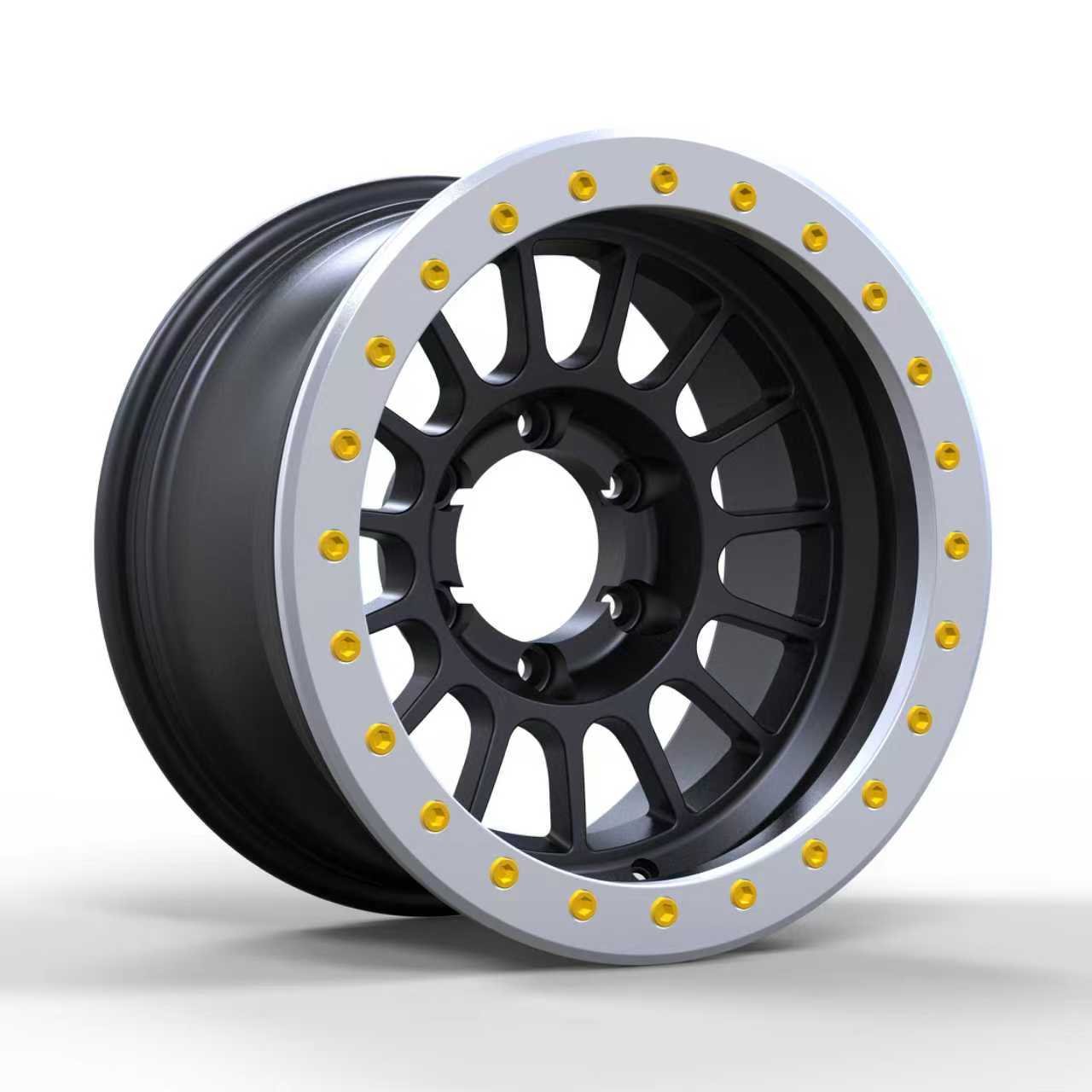

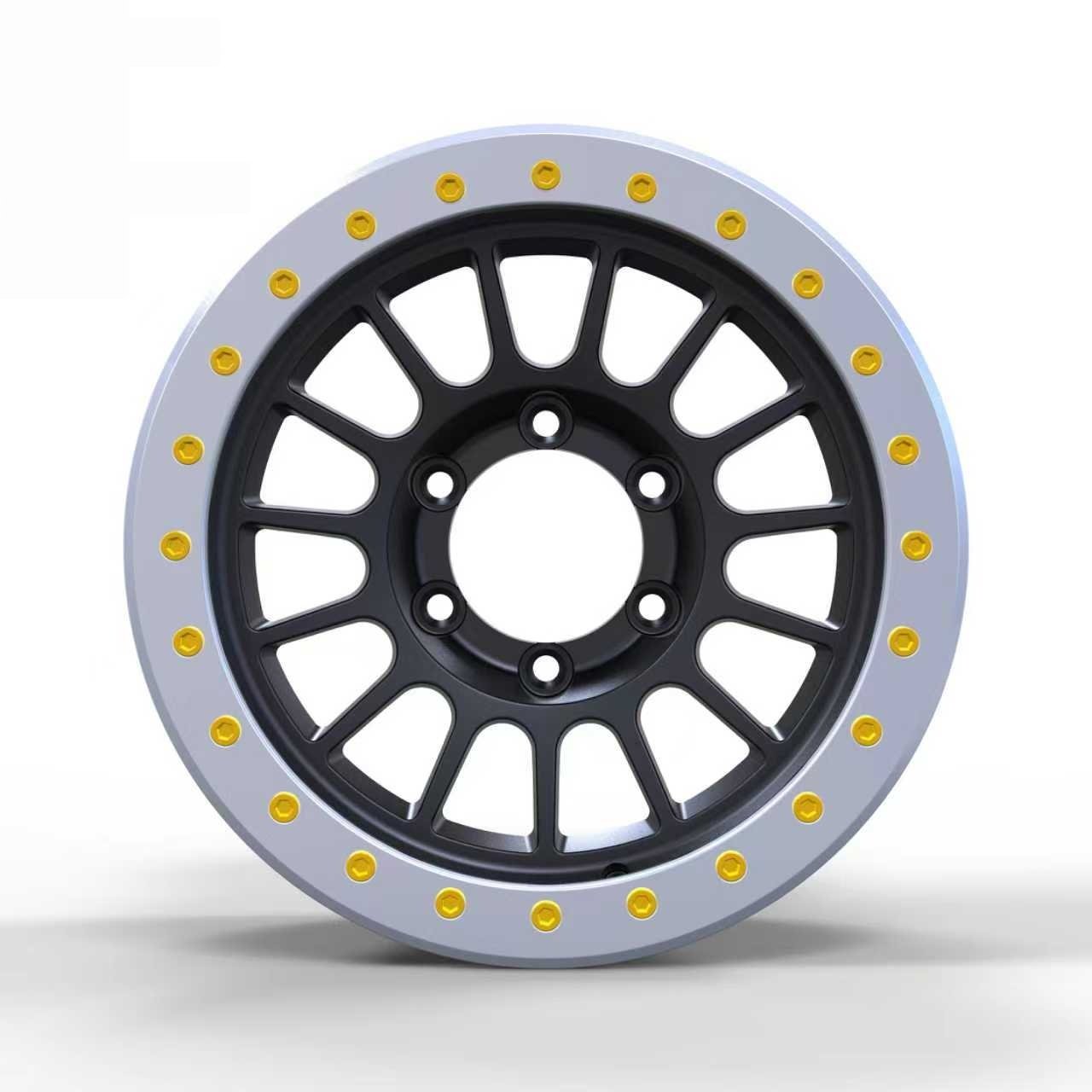

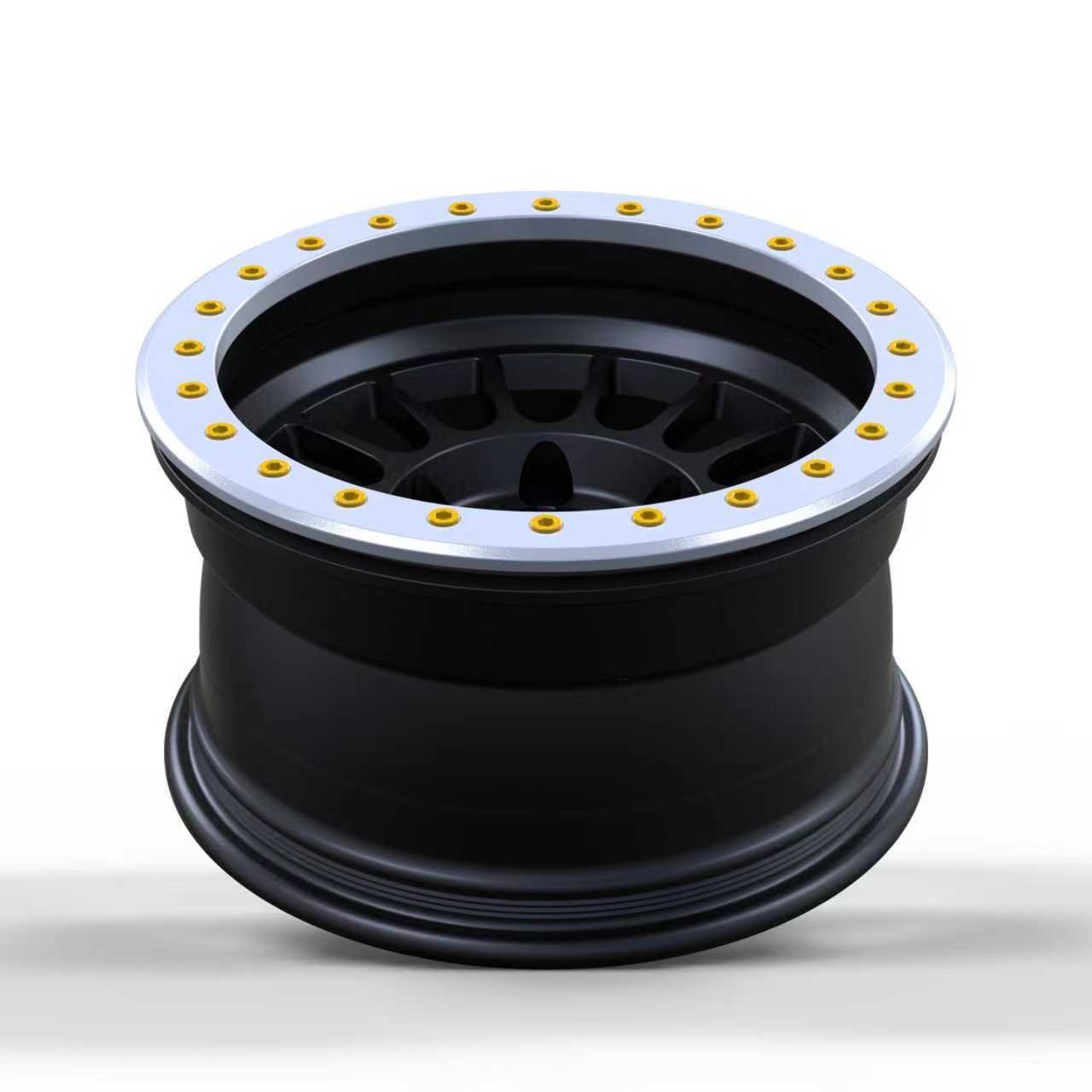

Custom 16×9.0 Beadlock Off-Road Wheels for 1997 Nissan Patrol GRY60
Key Features
- Engineered for 1997 Nissan Patrol GRY60: Precision machining with a 6×139.7 bolt pattern and 110.1mm center bore ensures a flawless hub-centric fitment for this legendary 4×4 chassis.
- Functional Beadlock Performance: Features a genuine beadlock ring secured by heavy-duty yellow bolts, physically locking the tire bead to the wheel to prevent de-beading during low-pressure rock crawling or sand driving.
- Extreme Negative Offset: The aggressive ET -44 offset provides a deep lip aesthetic and significantly widens the vehicle’s track, drastically improving off-road stability and handling.
- Massive 1050KG Load Rating: Forged to withstand the most punishing terrains and overland payloads without compromising structural integrity.
- B2B Manufacturing Excellence: Direct-from-factory production by Shanghai ChenCheChi Technology Co., Ltd., offering full support for custom specifications, branding, and bulk global logistics.
| Color |

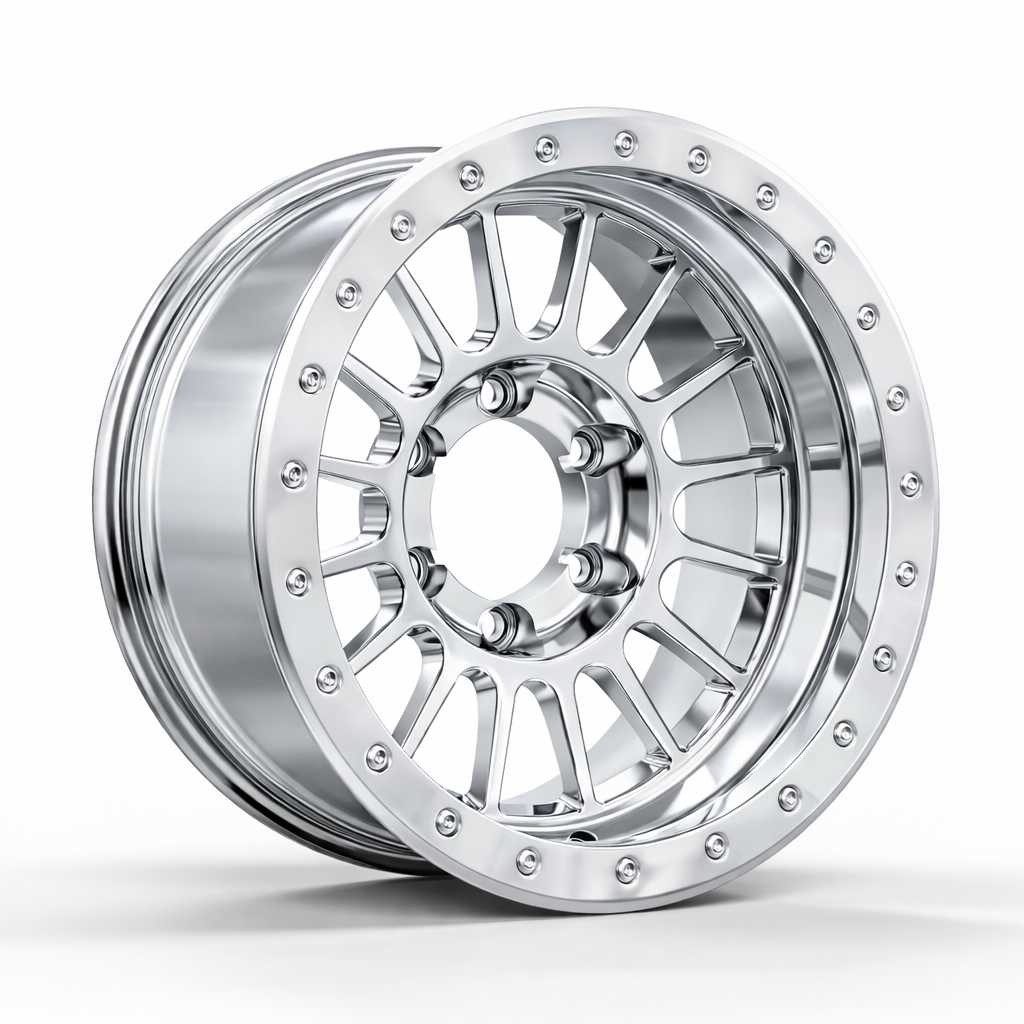

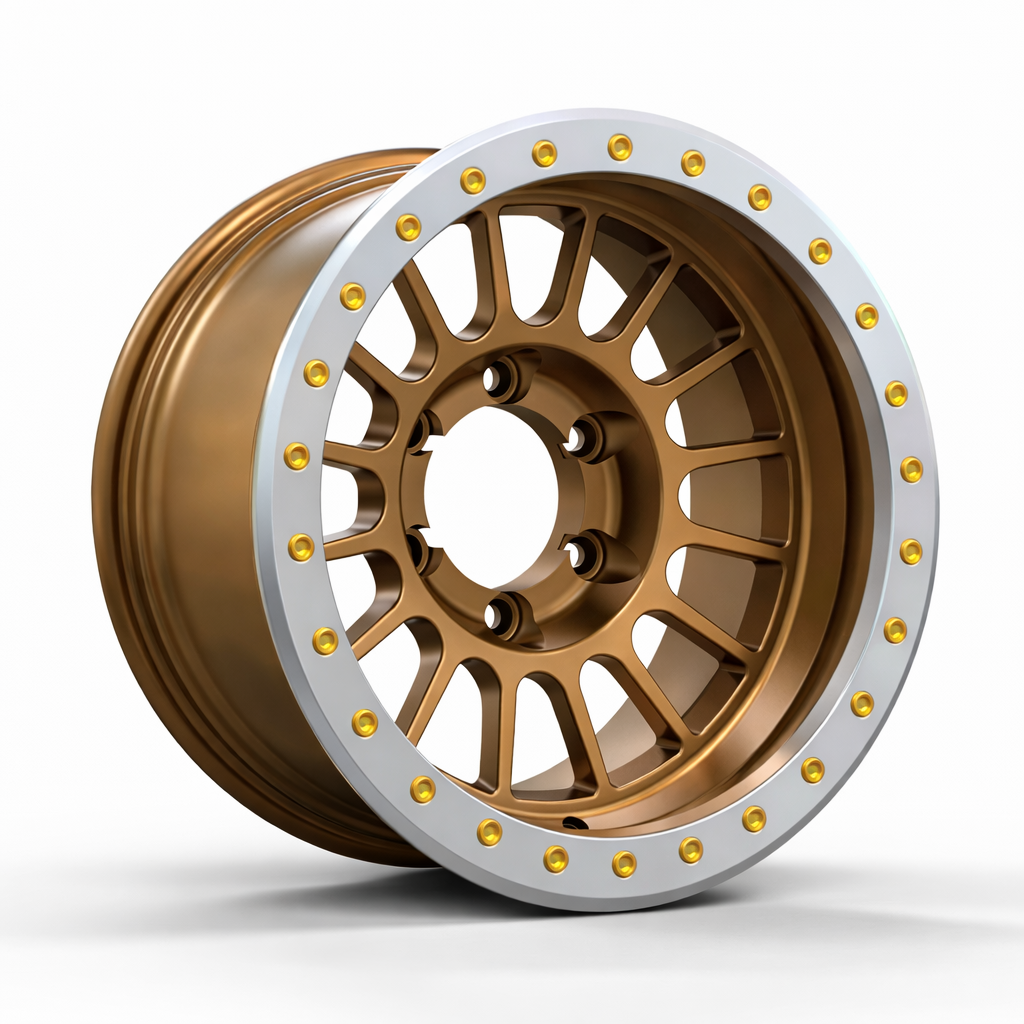

Fully Polished ,Matte Black ,Satin Bronze |
|---|
Size and packaging guidelines
WQ
| Parameter | Description | OEM/ODM Customization |
| Outer Lip / Dish | Distance from the spoke face to the edge. | Adjustable Lip Depth for aggressive wide-body fitment. |
| Spoke Design | Aesthetic and structural configuration. | Full ODM design capability from 2D sketches to 3D modeling. |
| Center Bore (CB) | The hub mounting hole diameter. | Precision boring for Hub-Centric fitment (No rings needed). |
| PCD / Bolt Pattern | Number of holes & circle diameter. | Multi-PCD customization (e.g., 5x120, 8x165.1, etc.). |
| Offset (ET) | Mounting surface position relative to centerline. | Tailored ET to achieve a perfect "Flush" or "Stance" look. |
Description
Equip your B2B inventory with the ultimate weapon for classic off-road builds. Meticulously designed for the 1997 Nissan Patrol GRY60 (a staple in the Australian, Middle Eastern, and Southeast Asian hardcore 4×4 scenes), these 16-inch beadlock wheels provide both raw mechanical dominance and undeniable aesthetic appeal.
The wheel features a high-contrast design: a stealthy matte black multi-spoke center paired with a raw machined beadlock ring and distinct yellow assembly bolts. Beyond the striking looks, this wheel is built for business. The functional beadlock design allows off-roaders to air down their tires to extreme single-digit pressures for maximum traction over rocks, mud, and sand dunes without the fear of tire-to-wheel separation.
At a solid 1050KG load capacity per wheel, these rims are ready to handle heavy expedition gear and armored Patrol builds. As a dedicated B2B manufacturer, cnwheelrims.com allows global wholesalers and specialized 4×4 tuning shops to order these wheels with custom finishes, variable offsets, or even private label branding to match your company’s portfolio.
Specifications Table
| Parameter | Standard Specification (Nissan Patrol GRY60) | Customization Options Available for B2B Orders |
|---|---|---|
| Material | Aerospace-Grade Forged Aluminum Alloy | Standard |
| Construction | Heavy-Duty Monoblock with Bolt-on Beadlock | Simulated Beadlock or True Beadlock options |
| Wheel Diameter | 16 Inches | 15″, 16″, 17″, 18″, 20″, 22″ |
| Wheel Width | 9.0 Inches (9J) | Customizable (e.g., 7.0J to 12.0J) |
| PCD (Bolt Pattern) | 6 X 139.7 | Custom Drilling (e.g., 5×127, 5×150, 6×135) |
| Offset (ET) | -44 mm | Custom Offsets Available (Positive to Deep Negative) |
| Center Bore (CB) | 110.1 mm | Custom Hub-Centric Machining to fit any chassis |
| Center Finish | Matte Black | Custom (Bronze, Gloss Black, Gunmetal, etc.) |
| Beadlock Ring | Machined Silver / Raw Aluminum | Custom (Color-matched, Anodized, Matte Black) |
| Hardware / Bolts | High-Tensile Yellow/Gold Coated | Custom (Chrome, Black Titanium, Stainless Steel) |
| Load Rating | 1050 KG (Per Wheel) | Standard (Heavier load ratings up to 1500KG+ available) |
| Certifications | VIA, JWL, ISO9001 | Standard compliance for international markets |
