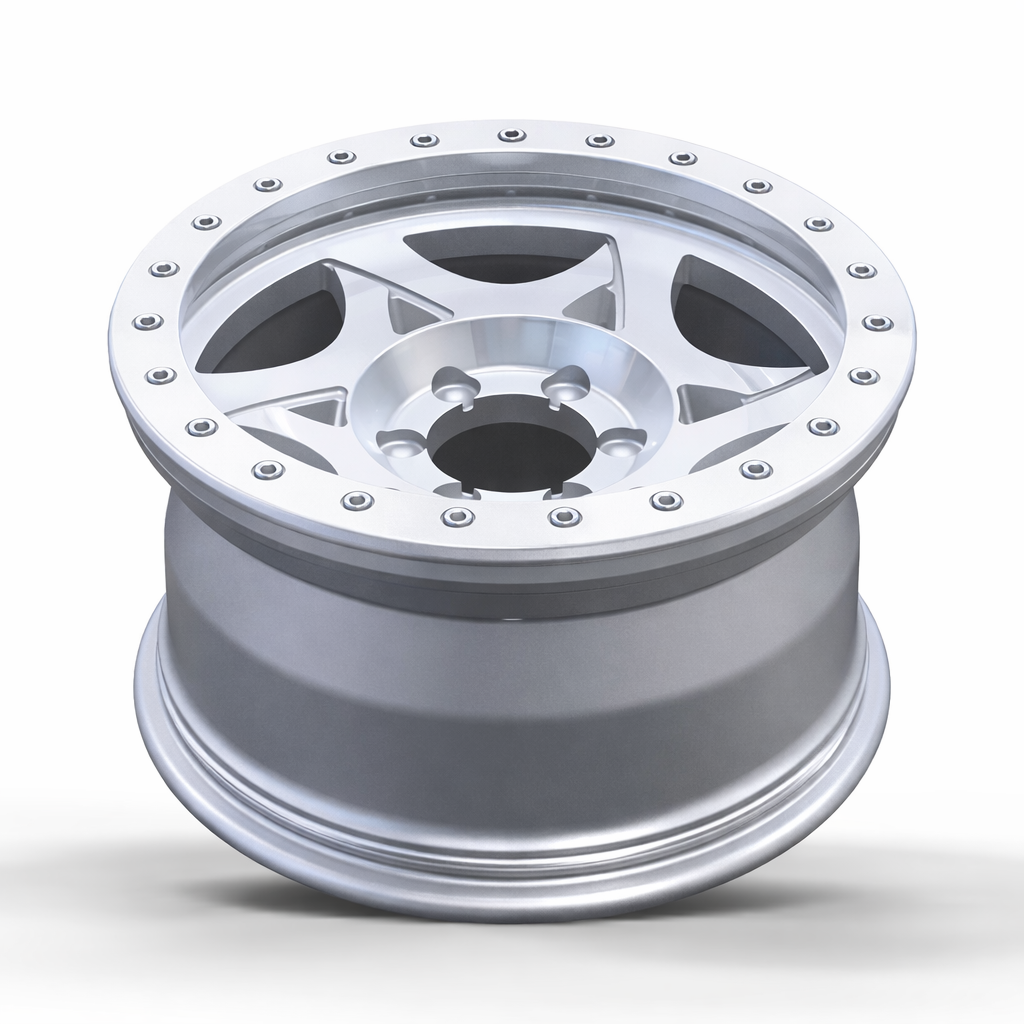

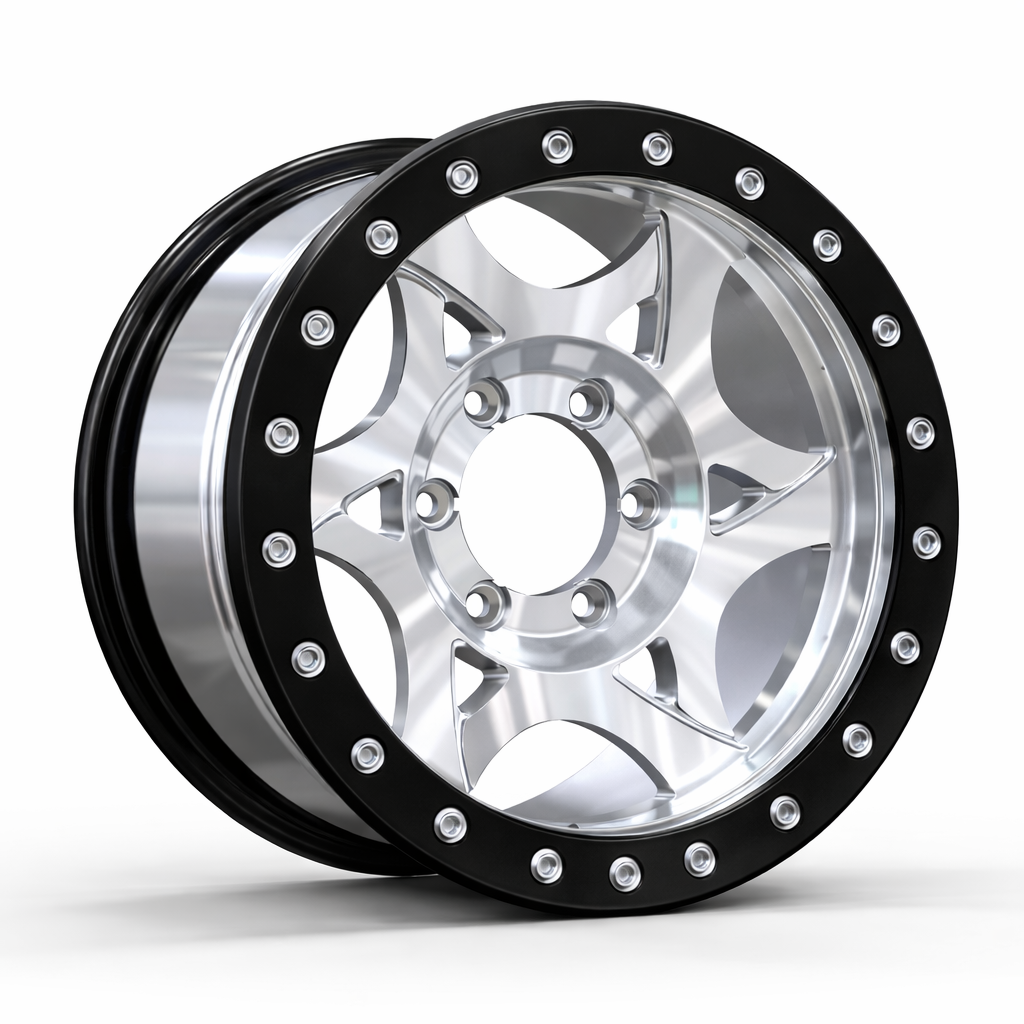

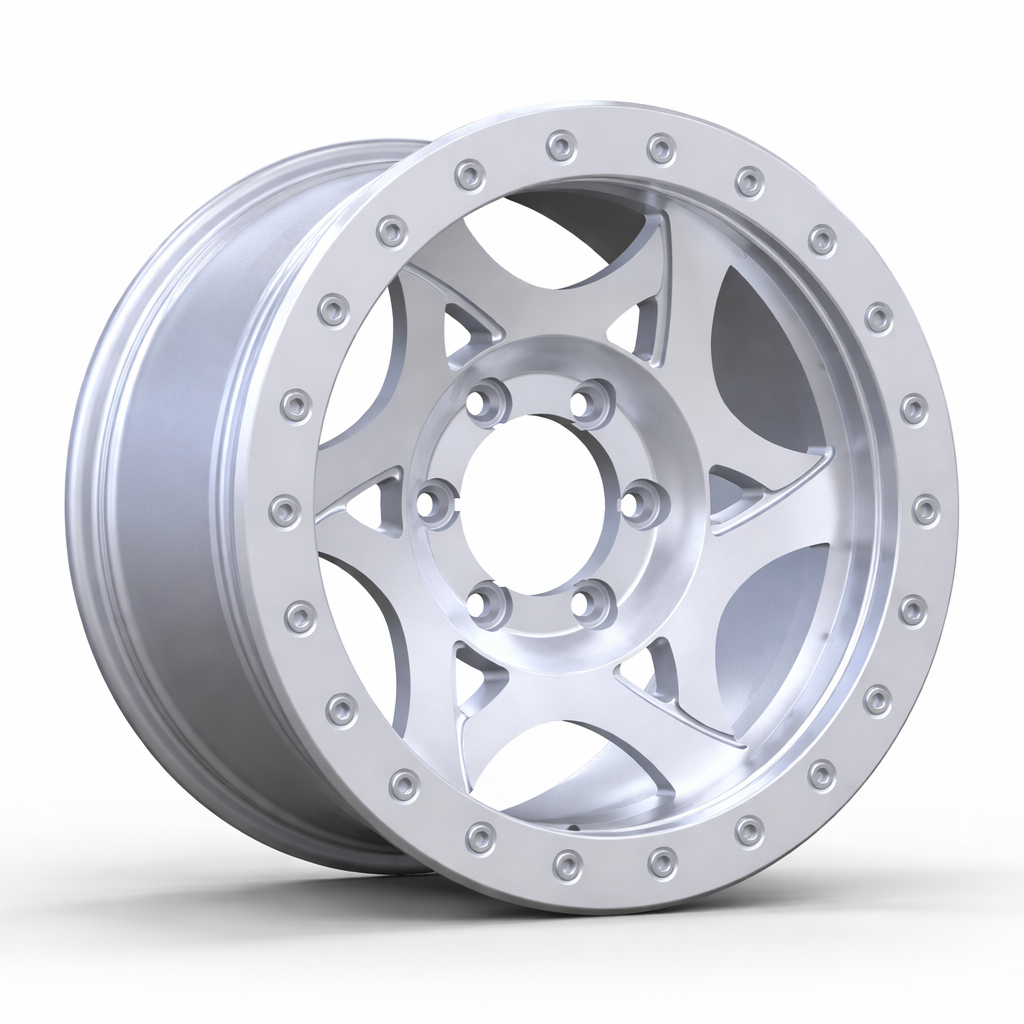

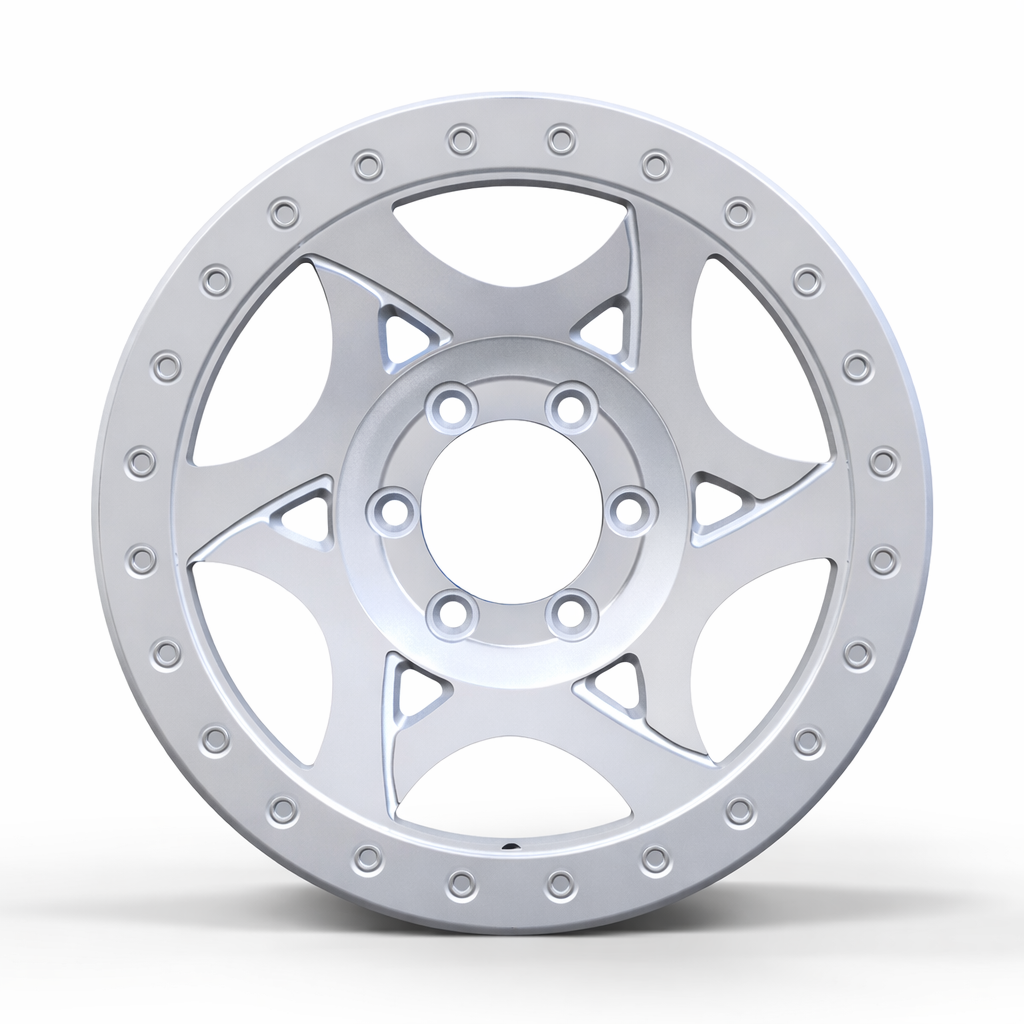

Custom 17″ Silver Machined True Beadlock Off-Road Wheels for Toyota Prado, Ford Bronco & Tank 300
Key Features:
- True Beadlock Functionality: Equipped with a functional outer beadlock ring secured by 21 heavy-duty bolts. This mechanism physically clamps the tire bead to the rim, preventing tire de-beading during extreme low-pressure off-road driving, rock crawling, and overlanding.
- Rugged Monoblock Construction: Engineered from high-strength aluminum alloy into a robust 1-piece structure. This design maximizes impact resistance and durability in harsh environments while maintaining a massive 900 KG (1,984 lbs) load rating per wheel.
- Aggressive Deep Concave Design: Features a classic 5-spoke deep concave profile that not only delivers an authoritative, trail-ready aesthetic but also provides essential structural integrity and brake caliper clearance for heavy 4×4 vehicles.
- Premium Fine Sparkle Silver Finish: Showcases a precision-machined face treated with a “Fine Sparkle Silver” metallic finish. Paired with a matching silver beadlock ring and hardware, it offers a refined yet highly aggressive look that stands out on the trails.
- Precision 6-Lug 4×4 Fitment: Specifically engineered for top-tier off-road platforms with a 6×139.7 PCD, an aggressive ET 0 offset, and a 108.0mm center bore, ensuring a perfect, wide-stance fitment for ultimate trail stability.
- Global B2B & Wholesale Partner: Manufactured directly by Shanghai ChenCheChi Technology Co., Ltd. (CNWR), providing international auto part distributors, 4×4 modification shops, and private-label brands with factory-direct pricing, ready-to-ship inventory, and comprehensive OEM/ODM services.
| Color |
Brushed Silver ,Fully Polished ,Satin Black |
|---|
Size and packaging guidelines
WQ
| Parameter | Description | OEM/ODM Customization |
| Outer Lip / Dish | Distance from the spoke face to the edge. | Adjustable Lip Depth for aggressive wide-body fitment. |
| Spoke Design | Aesthetic and structural configuration. | Full ODM design capability from 2D sketches to 3D modeling. |
| Center Bore (CB) | The hub mounting hole diameter. | Precision boring for Hub-Centric fitment (No rings needed). |
| PCD / Bolt Pattern | Number of holes & circle diameter. | Multi-PCD customization (e.g., 5x120, 8x165.1, etc.). |
| Offset (ET) | Mounting surface position relative to centerline. | Tailored ET to achieve a perfect "Flush" or "Stance" look. |
Description
Equip your customers for the most demanding terrains with our Custom 17″ Silver Machined True Beadlock Off-Road Wheels, purposely built for legendary 4×4 platforms including the Toyota Prado, Land Cruiser, Ford Bronco, and GWM Tank 300. Designed for high-end off-road tuning shops and global B2B wholesale distributors, these wheels deliver the ultimate combination of hardcore functionality and striking aesthetics.
At the core of this wheel is a genuine beadlock system. The heavy-duty 21-bolt outer ring physically locks the tire to the wheel, allowing drivers to air down to extremely low tire pressures for maximum traction in sand, mud, and rocks without the risk of the tire slipping off the rim. Forged from high-strength aluminum alloy into a 1-piece monoblock structure, these wheels effortlessly support the intense weight and abuse of modified overland vehicles with a certified 900 KG load rating.
As your direct-from-factory manufacturing partner, CNWR (CN Wheel Rims) is dedicated to scaling your 4×4 aftermarket business. Whether you are seeking reliable wholesale inventory of these exact 6×139.7 off-road wheels or require comprehensive OEM/ODM services to develop proprietary designs, custom offsets, or unique colorways (like Matte Black or Bronze), our world-class facility guarantees precision engineering and lucrative global fulfillment.
Specifications Table:
| Specification | Parameter Value | Customization Options |
|---|---|---|
| Compatible Vehicles | Toyota Prado, Land Cruiser, Ford Bronco, Tank 300 | Custom fitments for Jeep Wrangler, RAM 1500, Tacoma |
| Wheel Structure | 1-Piece High-Strength Aluminum Alloy | Fully Forged 1-Piece / 2-Piece upgrades available |
| Beadlock Type | True Beadlock (21-Bolt Functional Ring) | Simulated (Street-Legal) Beadlock available |
| Design Style | Classic 5-Spoke / Deep Concave | Custom spoke profiles and CNC milling patterns |
| Diameter x Width | 17″ x 9.0J | 15″ to 24″ custom off-road sizes available |
| PCD (Bolt Pattern) | 6 x 139.7 mm | Custom Machined (e.g., 5×127, 6×135, 8×165.1) |
| Offset (ET) | 0 mm | Custom Offsets (Aggressive Negative to Positive ET) |
| Center Bore (CB) | 108.0 mm | Custom Machined to match specific 4×4 hubs |
| Load Rating | 900 KG | Heavy-Duty capacity available for armored/commercial builds |
| Finish / Color | Fine Sparkle Silver Machined Face | Matte/Gloss Black, Bronze, Gunmetal, Custom Colors |
| Business Services | Factory Direct / B2B Wholesale / In-Stock | OEM, ODM, Private Label Center Caps, Custom Hardware |
