Custom 18-Inch Forged Beadlock Drag Racing Wheels for 2019 McLaren 720s
Key Features:
- Precision CNC Beadlock System: Specifically engineered for competitive drag racing. The true beadlock ring mechanically secures the tire bead to the rim, preventing tire-to-wheel slippage during extreme horsepower launches and hard acceleration.
- Aerospace-Grade 6061-T6 Forged Aluminum: Manufactured from premium forged aluminum, offering an exceptional strength-to-weight ratio. This ultra-lightweight construction significantly reduces unsprung mass, optimizing track times and vehicle handling.
- Track-Optimized Fitment: Configured in an aggressive 18×11.0 setup to accommodate massive drag radials or slicks, ensuring maximum traction for high-output supercars like the McLaren 720s.

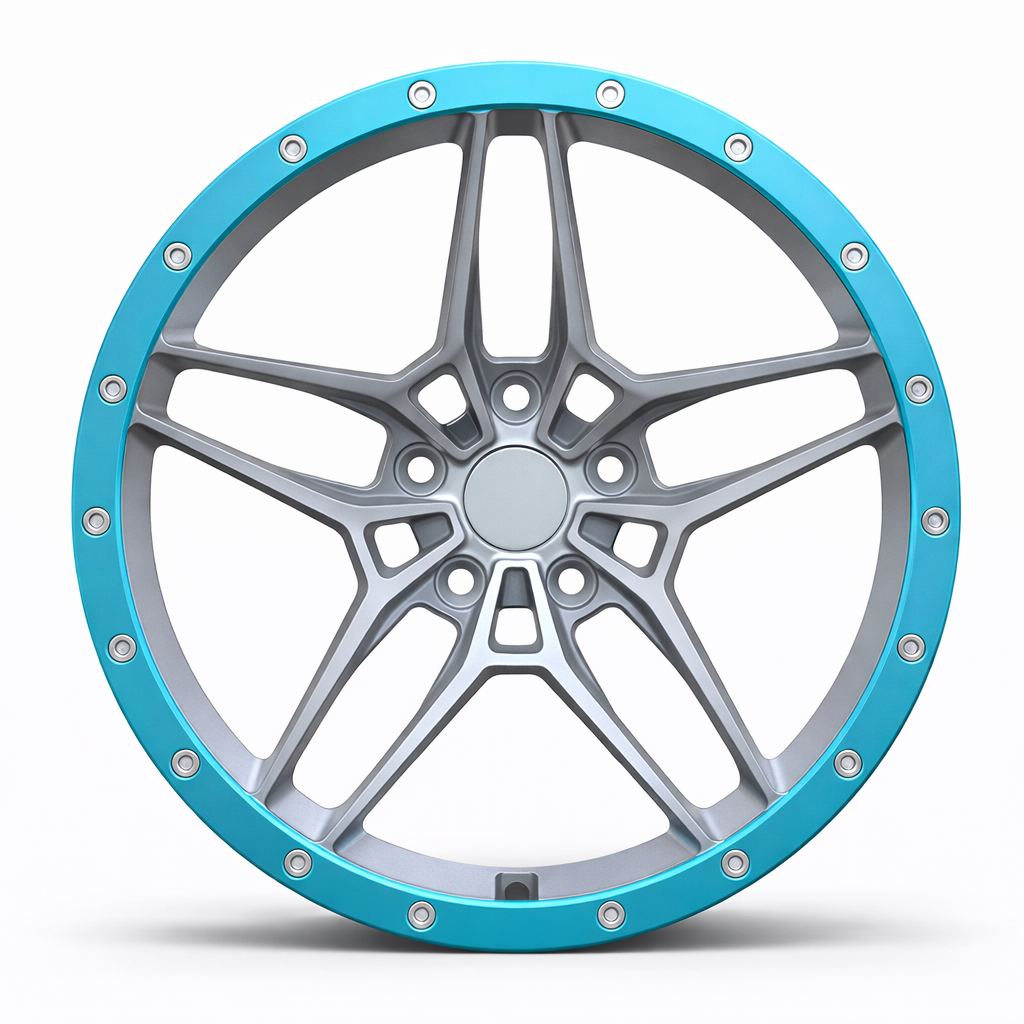

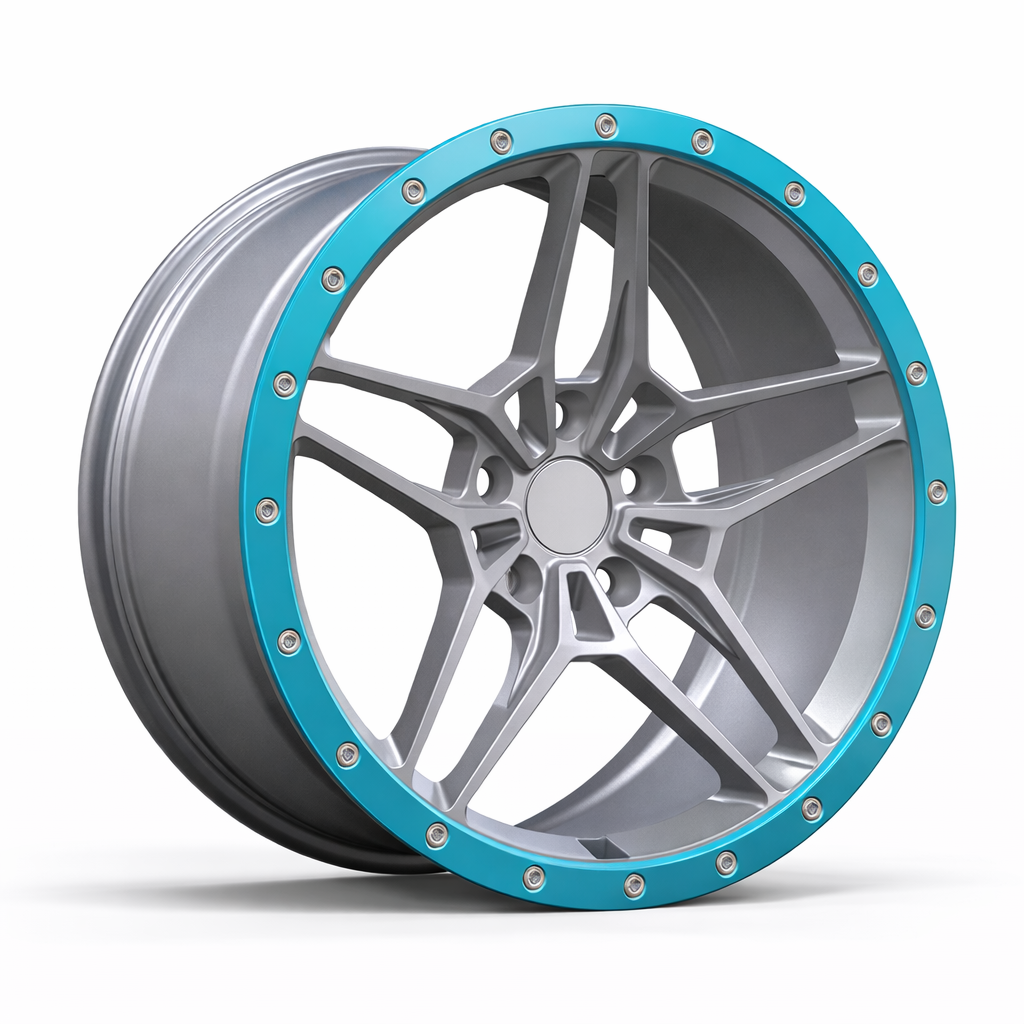

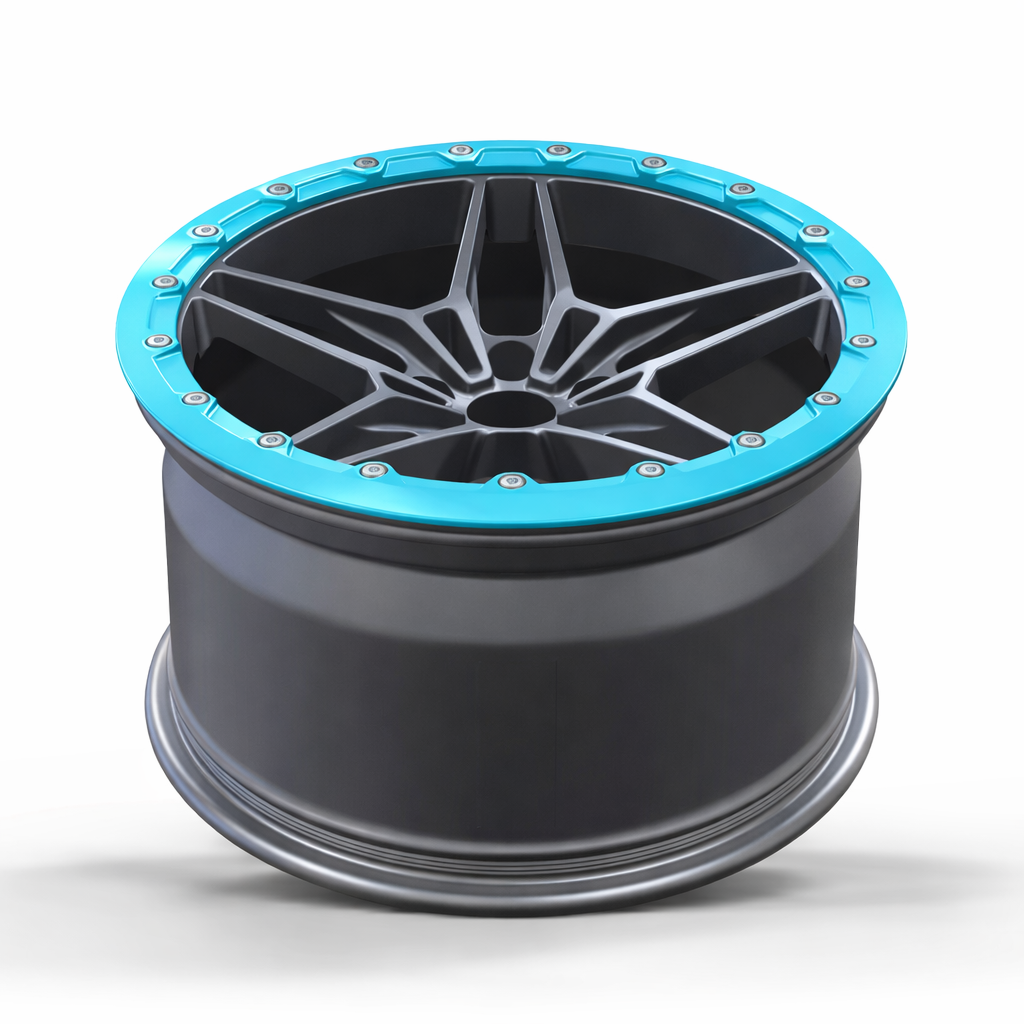

- Striking Multi-Color Aesthetic: Showcased with a stealthy Gunmetal wheel body contrasted by a vibrant Gloss Blue beadlock ring and secured with premium electroplated hardware.
- Direct Factory B2B Solutions: Produced by Shanghai ChenCheChi Technology Co., Ltd., delivering scalable wholesale inventory, competitive profit margins, and comprehensive OEM/ODM customization for performance shops and distributors.
| Color |

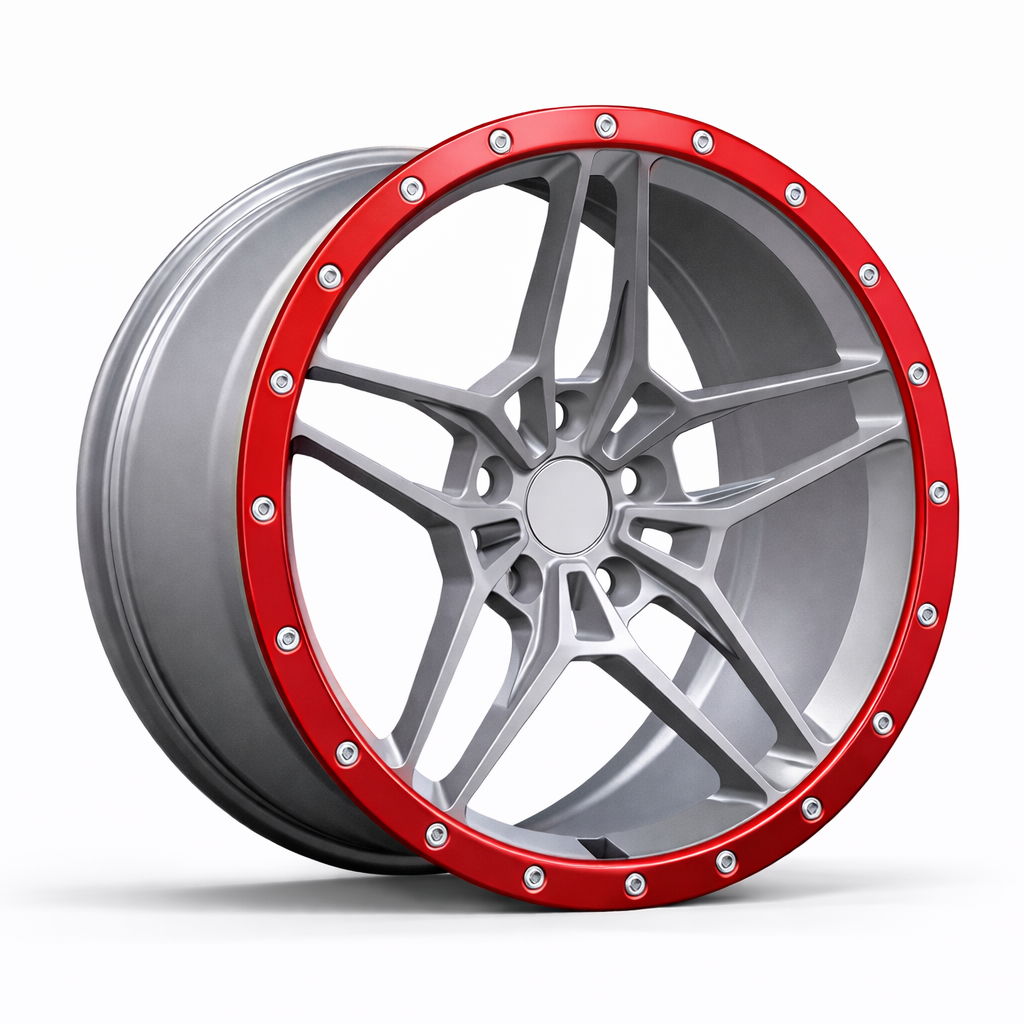

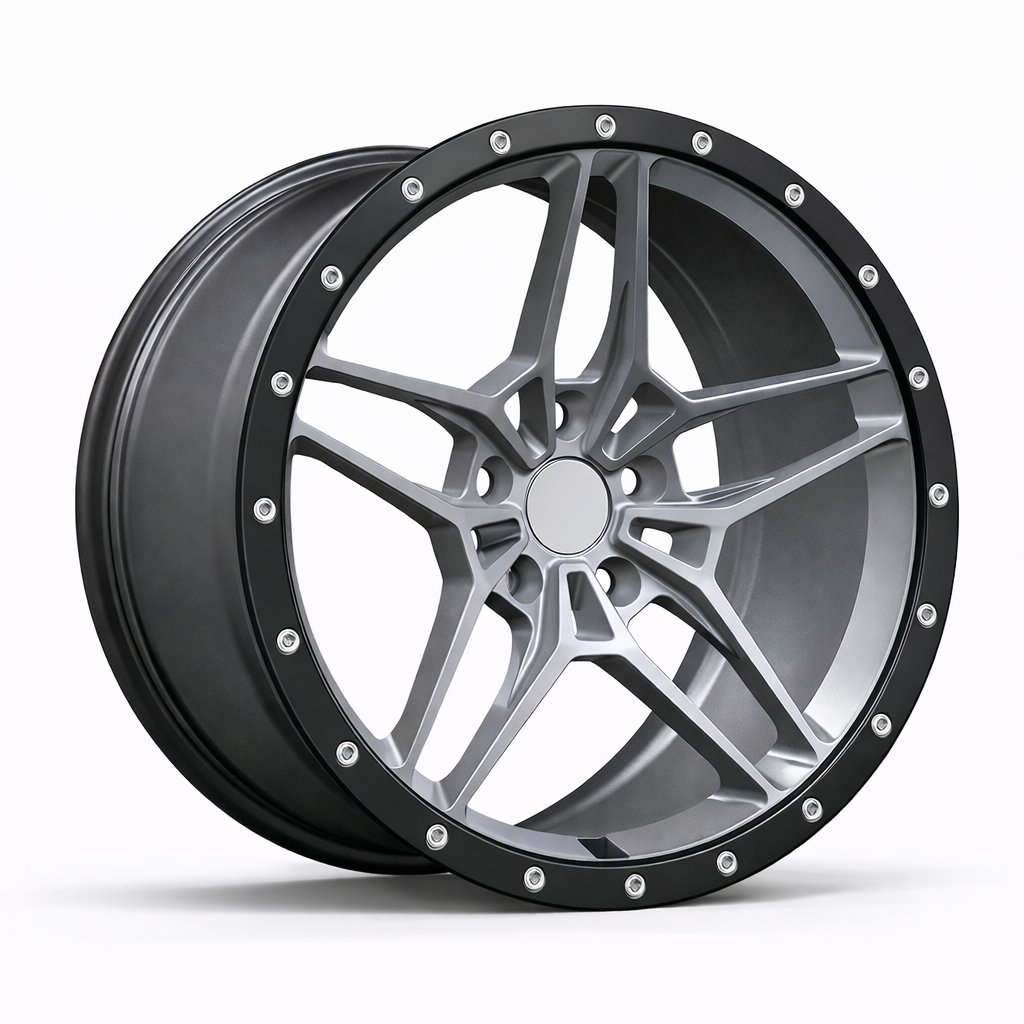

Candy Blue ,Candy Red ,Matte Black |
|---|
Size and packaging guidelines
WQ
| Parameter | Description | OEM/ODM Customization |
| Outer Lip / Dish | Distance from the spoke face to the edge. | Adjustable Lip Depth for aggressive wide-body fitment. |
| Spoke Design | Aesthetic and structural configuration. | Full ODM design capability from 2D sketches to 3D modeling. |
| Center Bore (CB) | The hub mounting hole diameter. | Precision boring for Hub-Centric fitment (No rings needed). |
| PCD / Bolt Pattern | Number of holes & circle diameter. | Multi-PCD customization (e.g., 5x120, 8x165.1, etc.). |
| Offset (ET) | Mounting surface position relative to centerline. | Tailored ET to achieve a perfect "Flush" or "Stance" look. |
Description
Equip your high-performance aftermarket catalog with our custom 18-inch forged beadlock wheels, purpose-built for extreme drag racing applications on the 2019 McLaren 720s. Designed for B2B distributors, premium tuning facilities, and motorsport suppliers, these wheels deliver the uncompromising grip and structural integrity required for high-horsepower supercars.
At the core of this wheel’s performance is the CNC-machined beadlock system. When high-torque vehicles launch, standard wheels risk spinning inside the tire. Our mechanical beadlock clamps the tire firmly in place, ensuring 100% power transfer to the pavement. Forged from aerospace-grade 6061-T6 aluminum, the wheel weighs less than standard cast options while supporting an impressive 850 KG load capacity.
Visually, the wheel commands attention with its Gunmetal face, vivid Blue beadlock ring, and electroplated bolts. Whether your business requires this exact McLaren-spec setup or fully bespoke OEM/ODM manufacturing tailored to different supercars, bolt patterns, or custom colorways, our direct-factory capabilities ensure premium quality and global delivery.
Specifications & Customization Options:
| Specification | Standard Configuration (2019 McLaren 720s) | Customization (OEM/ODM) |
| Application | Supercar / Drag Racing | Custom structural tuning for any high-performance platform |
| Material | 6061-T6 Forged Aluminum Alloy | – |
| Size (Diameter x Width) | 18″ x 11.0″ | Fully customizable diameters and widths (e.g., 15″ to 22″) |
| PCD (Bolt Pattern) | 5×112 | Custom precision drilling for 4, 5, 6-lug applications |
| Offset (ET) | +25 mm | Custom offset machining for flush or track-specific fitments |
| Center Bore (CB) | 57.1 mm | Custom center bore machining available |
| Max Load Rating | 850 KG (1873 lbs) per wheel | Upgraded high-load ratings available upon request |
| Hardware | Premium Electroplated Bolts | Titanium hardware, custom colored bolts available |
| Finish/Color (Body) | Gunmetal | Gloss/Matte Black, Bronze, Brushed, Custom Powder Coat |
| Finish/Color (Ring) | Gloss Blue | Red, Gold, Black, Machined, Custom Anodized or Painted |
| Cap Type | Standard Matching Cap | Custom logo integration (Laser engraving, 3D milling) |
| Certifications | VIA, JWL, ISO9001 | Compliance testing for specific regional or track regulations |
| MOQ | Flexible for In-Stock Specs | Negotiable for dedicated OEM/ODM bespoke production runs |
